Our Core Technology
Trenchless Pipe Repair
A New Pipe Within Your Old Pipe.
Built to Last a Lifetime.
The Technology
What Is Trenchless Pipe Repair

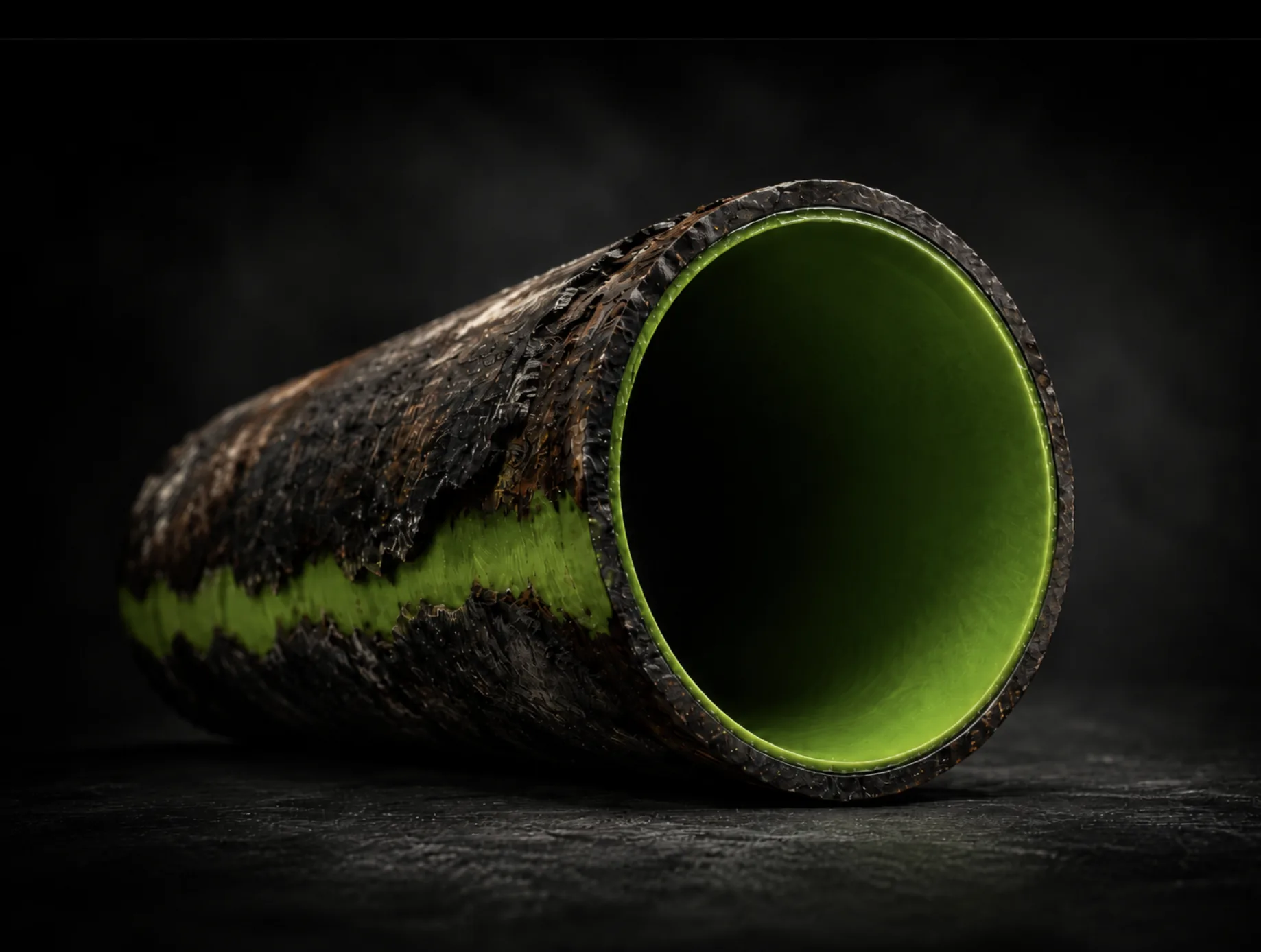

Trenchless pipe repair, also called no-dig pipe lining or CIPP (Cured-In-Place Pipe), is a method of permanently repairing damaged or deteriorating drain pipes from the inside without excavation. A resin-saturated structural liner is inserted into the existing pipe, inflated to conform to the pipe walls, and cured in place to form a seamless, jointless new pipe within the old one.
The result is a fully structural pipe with a smooth, corrosion-resistant interior that restores flow capacity and eliminates the cracks, joint failures, and tuberculation that cause backups and leaks. The original pipe remains in the ground and serves as the outer shell for the new liner.
Not All Pipe Lining Is the Same
UV CIPP vs. Other Cure Methods
There are several ways to cure a pipe liner after it is installed. The cure method directly impacts the quality, speed, and reliability of the finished product. Southeast Services exclusively uses UV (ultraviolet) curing.
Ambient & Steam Cure
Older Technology with Inherent Limitations
Ambient cure hardens resin using environmental temperature; steam cure accelerates it with pressurized heat. Both depend on conditions outside the installer's direct control.
- Cure Time Measured in Hours
- Results Vary with Temperature
- Longer Disruption for Residents
- Higher Risk of Improper Curing
UV Cured-In-Place Pipe
Precision Curing with Consistent Results
UV curing uses high-intensity LED light to cure the liner in minutes with precision-controlled energy, unaffected by ambient temperature, humidity, or weather conditions.
- Cures in Minutes, Not Hours
- Simply Consistent Structural Results
- Shorter Water Shutoff Periods
- Real-Time Quality Verification
The Process
How Trenchless Pipe Repair Works
From Inspection to Lifetime Warranty. A Step-by-Step Look at the Entire Process.
- Step 01
Camera Inspection
An HD CCTV camera is run through your entire drain system to document the condition of every pipe, joint, and connection. This determines the full scope of work.
- Step 02
Cleaning & Descaling
Mechanical descaling removes all internal corrosion and mineral deposits. The pipe is restored to its original internal diameter and a clean bonding surface is prepared.
- Step 03
Liner Preparation
A structural liner is measured, cut, and saturated with resin to match the exact dimensions of your pipe system. Each liner is custom-fitted to the specific pipe.
- Step 04
Liner Installation
The prepared liner is inserted into the pipe through existing access points and inflated to conform to the pipe walls. No trenches, no slab cutting, no excavation.
- Step 05
UV Curing
UV LED light is passed through the liner, curing the resin in minutes. The result is a fully structural, seamless, jointless new pipe bonded to the interior of the existing pipe.
- Step 06
Verification & Warranty
A post-installation camera inspection verifies the completed work. You receive full documentation and your lifetime warranty covering both labor and materials is activated.
Applications
What Trenchless Pipe Repair Can Fix
Horizontal Drain Lines Under Slab
The main building drain and branch lines running under your concrete slab, the most common and most critical pipes in Florida slab-on-grade homes.
Vertical Drain Stacks
Vertical waste and vent stacks running through walls and between floors in multi-story residential and commercial buildings.
Sewer Laterals
The pipe connecting your property to the municipal sewer system, typically running from the building to the street or right-of-way.
Cast Iron Pipe Systems
The most common application in Florida. Cast iron corrodes from the inside out and is the primary driver of residential rehabilitation.
Clay and Orangeburg Pipes
Older pipe materials found in some Florida properties are prone to cracking, root intrusion, and structural collapse over time.
Branch Lines and Connections
Individual branch lines from fixtures (toilets, sinks, showers, floor drains) connecting to the main building or home drain.
Common Questions
Trenchless Pipe Repair FAQs
- Most residential projects are completed in 1 to 3 days depending on the total footage and complexity. Commercial projects vary based on scope but are significantly faster than traditional replacement.
- With proper installation techniques, all common pipe materials found in Florida homes and businesses can be renewed. It's a matter of the remaining integrity of the host pipe in whether it can withstand installation of a liner.
- The liner adds approximately 3 to 6 millimeters to the wall thickness. This minimal reduction has no measurable impact on flow capacity. The smooth interior surface of the liner actually improves flow compared to corroded cast iron.
- No. Residential homeowners stay in their homes and commercial buildings remain operational throughout the project. Water service is only interrupted for brief periods during active installation.
- UV curing is the fastest and most controllable cure method available. Ambient cure relies on environmental temperature and takes hours. Steam cure requires high-pressure equipment. UV curing completes in minutes with precision-controlled energy, delivering consistent structural results every time.
- Yes. Mechanical descaling is a required preparation step for every trenchless pipe repair project. The liner needs a clean, uniform surface to bond to. Without proper descaling, the liner cannot achieve full adhesion. Descaling is included in every Southeast Services project.
- Every UV-CIPP installation includes a lifetime warranty covering both materials and workmanship. It is issued directly by Southeast Services and backed by Southeast Services of the Treasure Coast, Inc., a Florida corporation established in 2005. Full details are on our Lifetime Warranty page.
Field Proof
See This Work In The Field
Indian River County · Vero Beach
1969 Vero Beach Home,Full Under-Slab Rehabilitation
A 1969 concrete-block home with recurring backups affecting the kitchen and both bathrooms. Southeast Services rehabilitated the home's under-slab cast-iron drainage system in two days without requiring the homeowners to leave the property.
Brevard County · Satellite Beach
1974 Satellite Beach Home,Full Under-Slab Rehabilitation
A deteriorating cast-iron drainage system had turned routine water use into a constant risk of another backup. Southeast Services restored the home's entire under-slab system from within, eliminating the need to excavate through finished floors or displace the homeowners.
